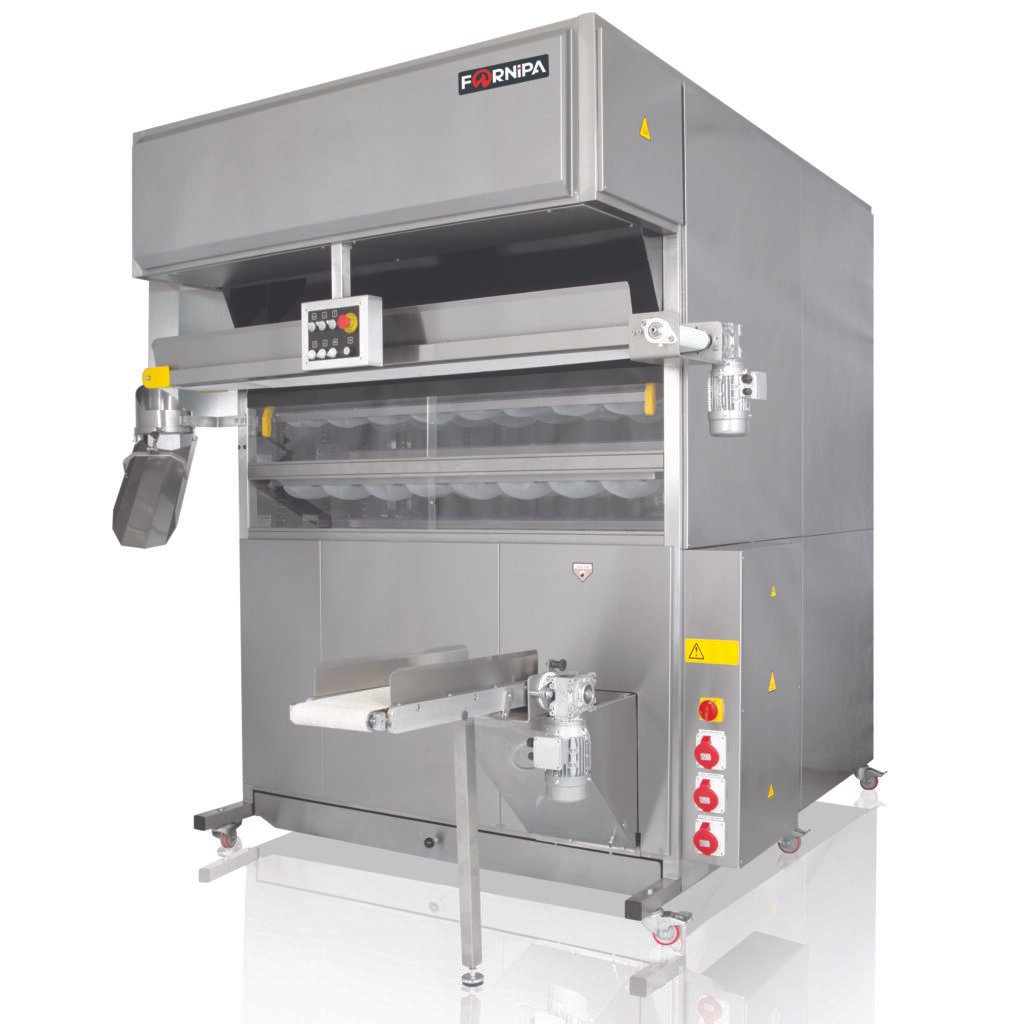

INTERMEDIATE PROOFER
The Intermediate Proofer is a precise and dependable machine designed to provide the necessary resting time for recently divided dough portions. This critical phase allows the dough to release tensions acquired during the division process, facilitating its elongation in the subsequent steps of the production process.
Operable in both manual and automatic modes, the Intermediate Proofer incorporates a sensor at the dough entrance, ensuring that each piece of dough delivered from the divider and rounder falls into an empty basket. This same sensor acts as a counter, providing a clear count of the dough pieces entering the prover. The positive transfer method shifts dough pieces toward the next pocket during each cycle.
For flexibility, the machine can be produced with a right entrance/left exit or vice versa configuration. The hygienic and easy-to-clean plastic baskets used in the prover are removable, ensuring efficient maintenance.
The Intermediate Proofer is available in various pocket quantities, including 88, 152, 176, 240, 328, 416, and 640 pockets, catering to different production needs.
Technical Specifications:
-Standard drive by a gear-motor for reliable operation.
-24 V control panel for efficient control.
-Removable plastic pockets for easy maintenance.
-Equipped with sockets for the divider, rounder, and moulder.
-Optional flour drawers under the prover (upon request).
-Alternative input and outlet positions for adaptability.
-Variable motor speed (upon request).
-Stainless steel body and pocket holders for durability and hygiene.
MODEL | POCKET NUMBER | DIMENSIONS W x D x H | DOUGH INPUT HEIGHT | DOUGH OUTPUT HEIGHT | POWER | WEIGHT | RESTING TIME |
---|---|---|---|---|---|---|---|
BH-IPM-88 | 88 | 48" x 42" x 98" | 32" | 61" | 208V - 3Ph 60Hz - 1.8AMPS | 882 lbs | 2 - 4 min. |
BH-IPM-152 | 152 | 78" x 42" x 83" | 32" | 49" | 208V - 3Ph 60Hz - 1.8AMPS | 992 lbs | 3,6 - 7,2 min. |
BH-IPM-176 | 176 | 78" x 42" x 98" | 32" | 61" | 208V - 3Ph 60Hz - 1.8AMPS | 1102 lbs | 4,2 - 8,4 min. |
BH-IPM-240 | 240 | 78" x 61" x 83" | 32" | 49" | 208V - 3Ph 60Hz - 1.8AMPS | 1213 lbs | 6 - 12 min. |
BH-IPM-328 | 328 | 78" x 61" x 98" | 32" | 61" | 208V - 3Ph 60Hz - 3.6AMPS | 1543 lbs | 8 - 16 min. |
BH-IPM-416 | 416 | 76" x 85" x 98" | 32" | 49" | 208V - 3Ph 60Hz - 3.6AMPS | 1763 lbs | 16 - 24 min. |
BH-IPM-640 | 640 | 114" x 83" x 98" | 33" | 69" | 208V - 3Ph 60Hz - 5.3AMPS | 1984 lbs | 8 - 19 min. |
